产品规格书 Products Specification |

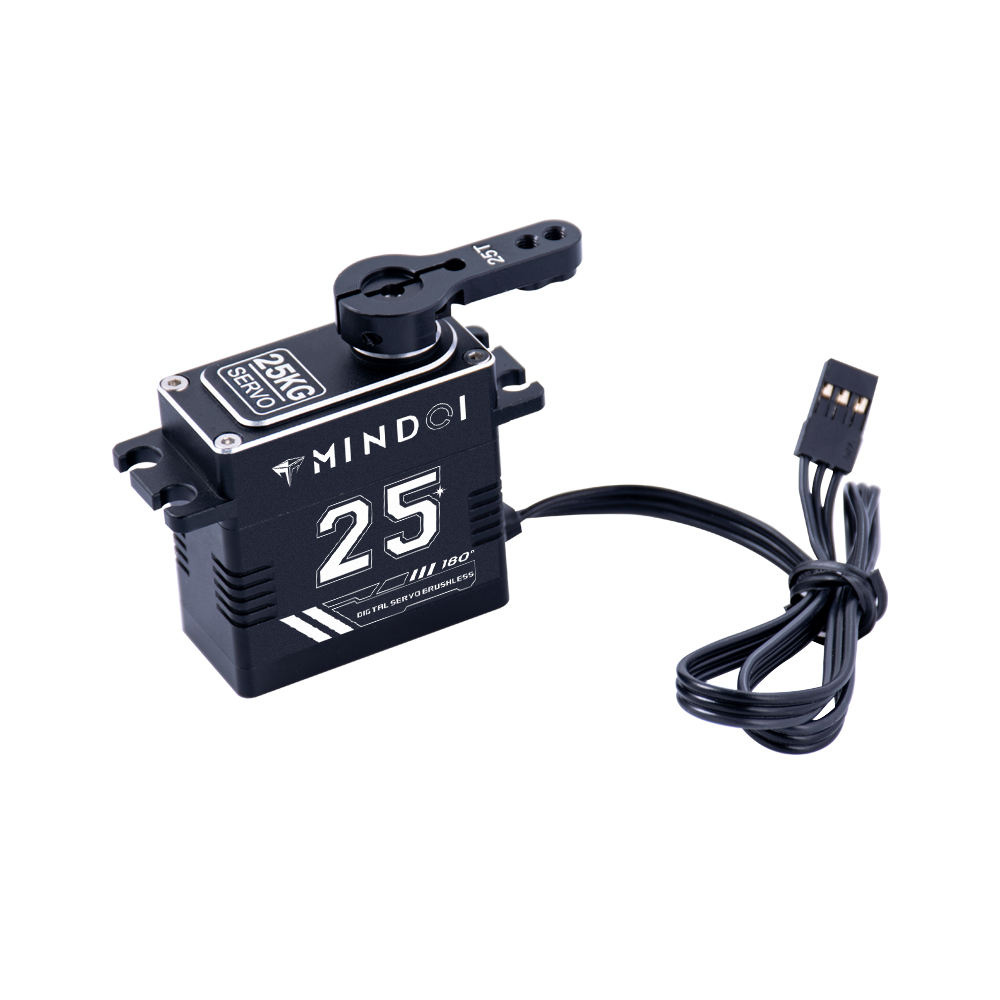

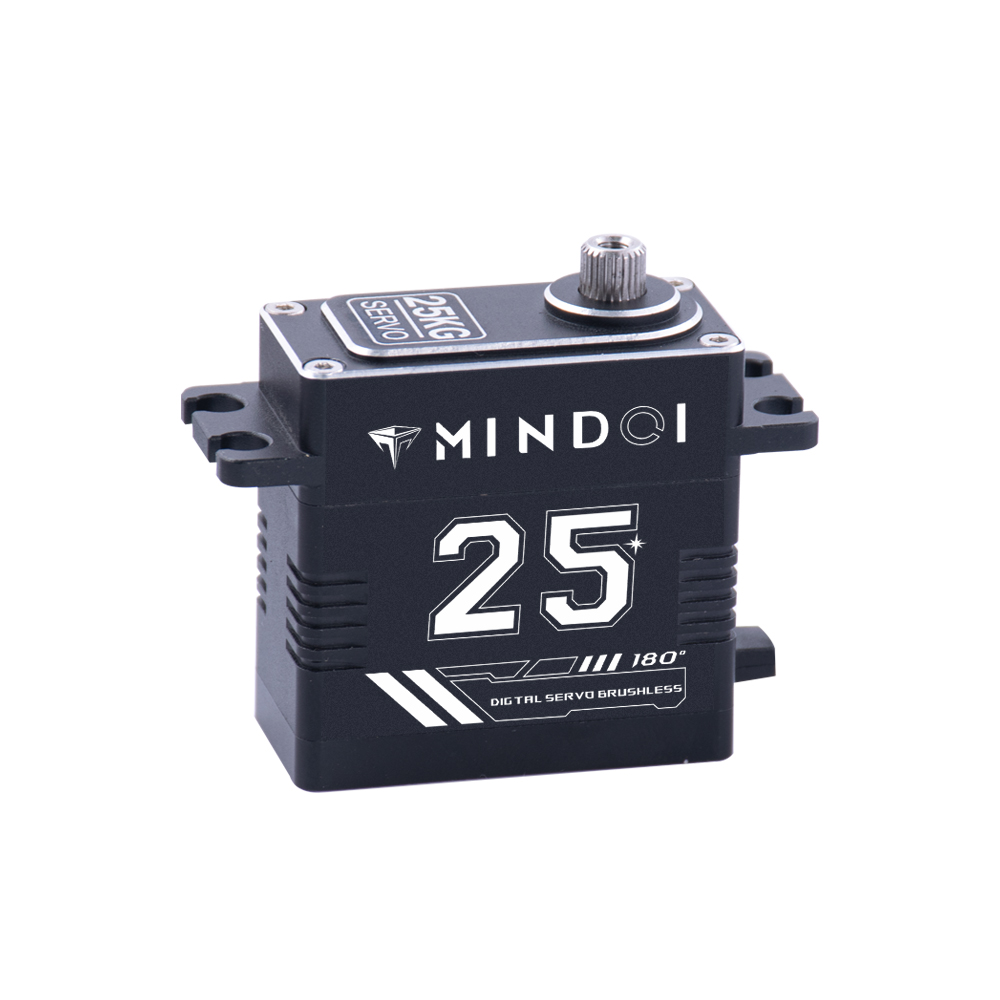

||
| Products Name:25KG Digital servo motor | ||
| 1.使用条件 Apply Environmental Condition | ||
| No | Item | Specification |
| 1.1 | 储存温度 Storage Temperature Range | -30℃～80℃ |
| 1.2 | 运行温度 Operating Temperature Range | -25℃～70℃ |
| 2.测试环境 Standard Test Environment | ||
| No | Item | Specification |
| 2.1 | 温度 Temperature Range | -25℃～70℃ |
| 2.2 | 湿度 Humidity Range | 65%±10% |
| 3. 机械特性 Mechanical Specification | ||
| No | Item | Specification |

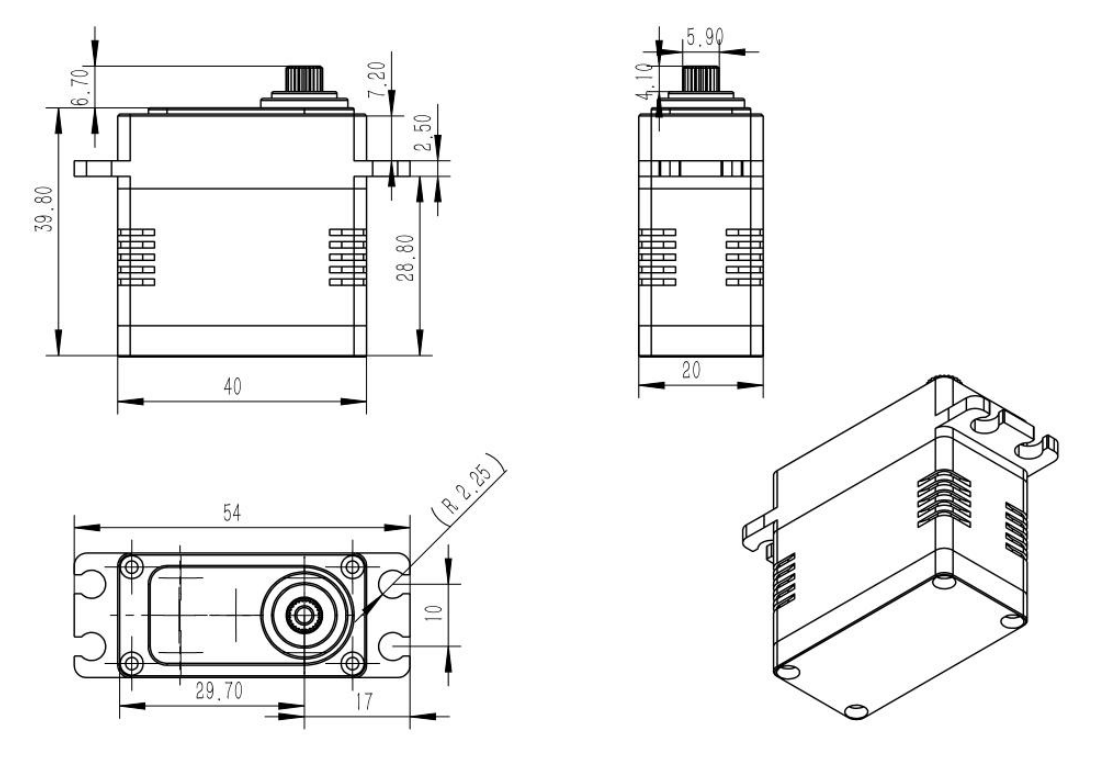

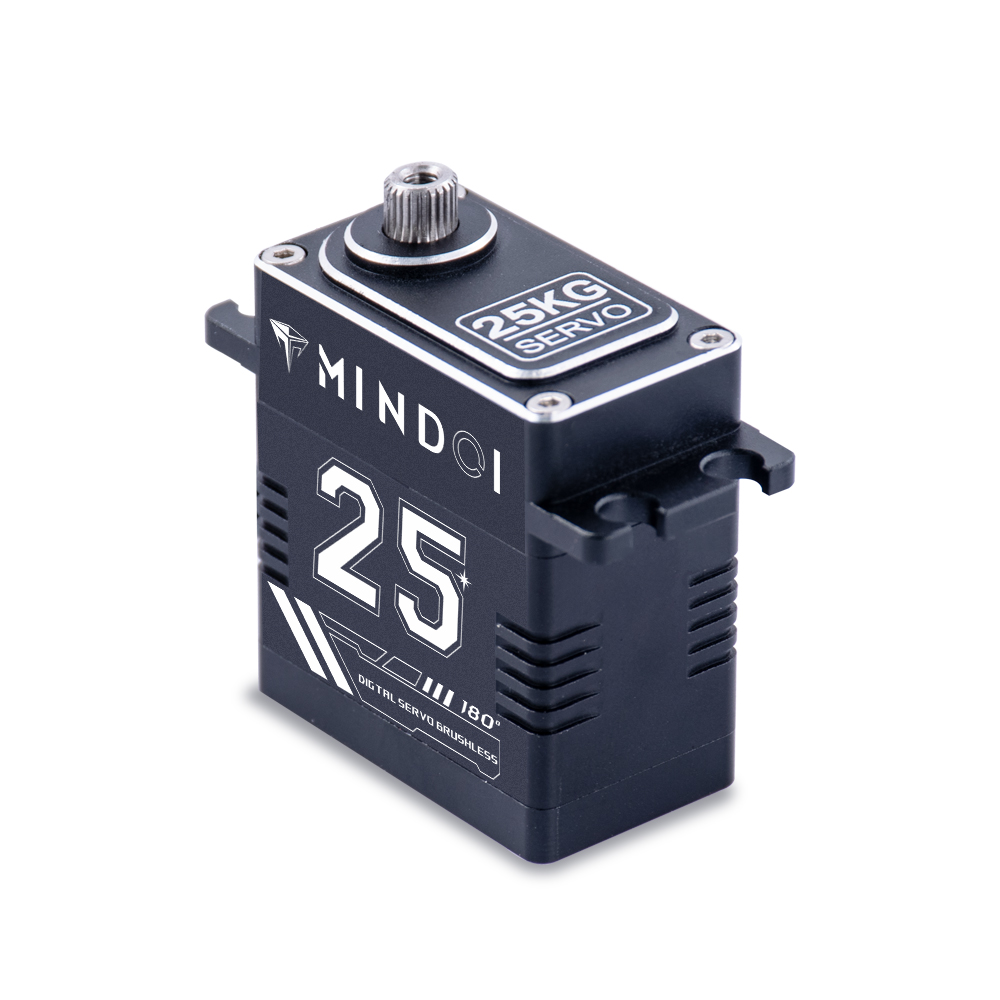

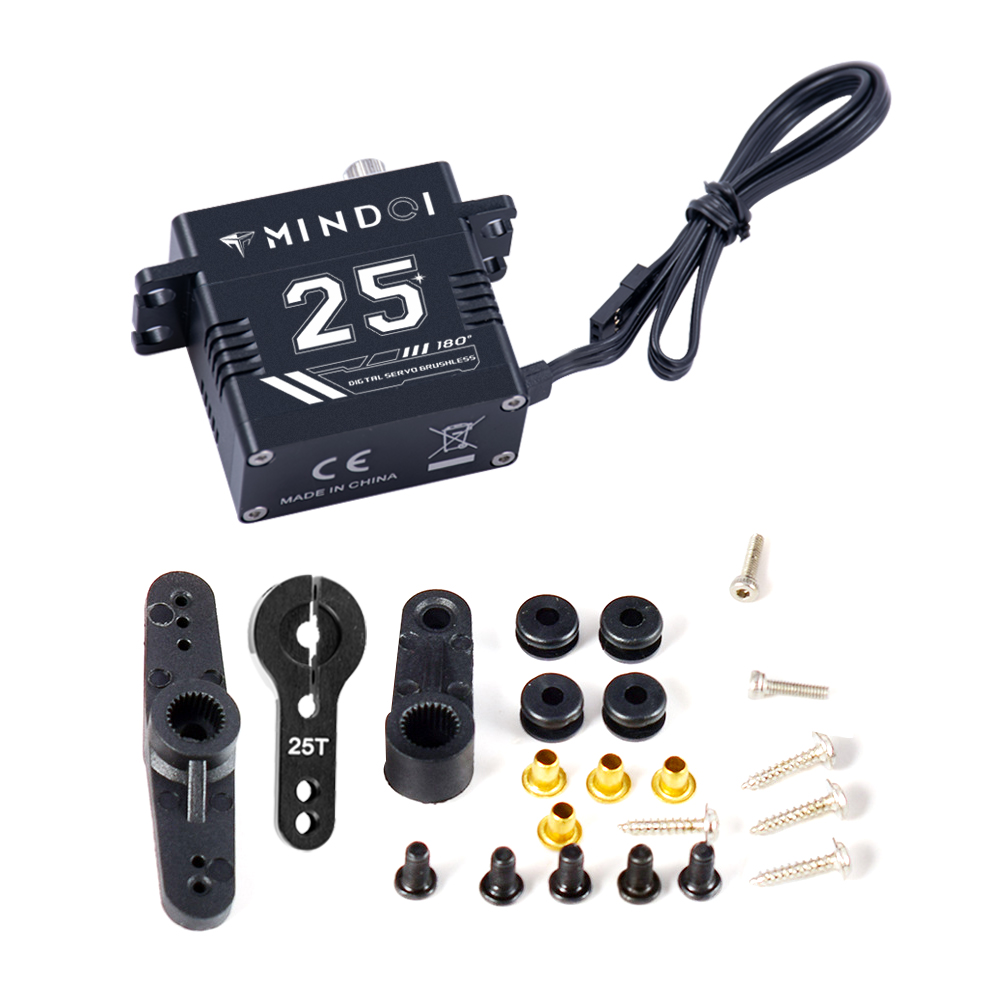

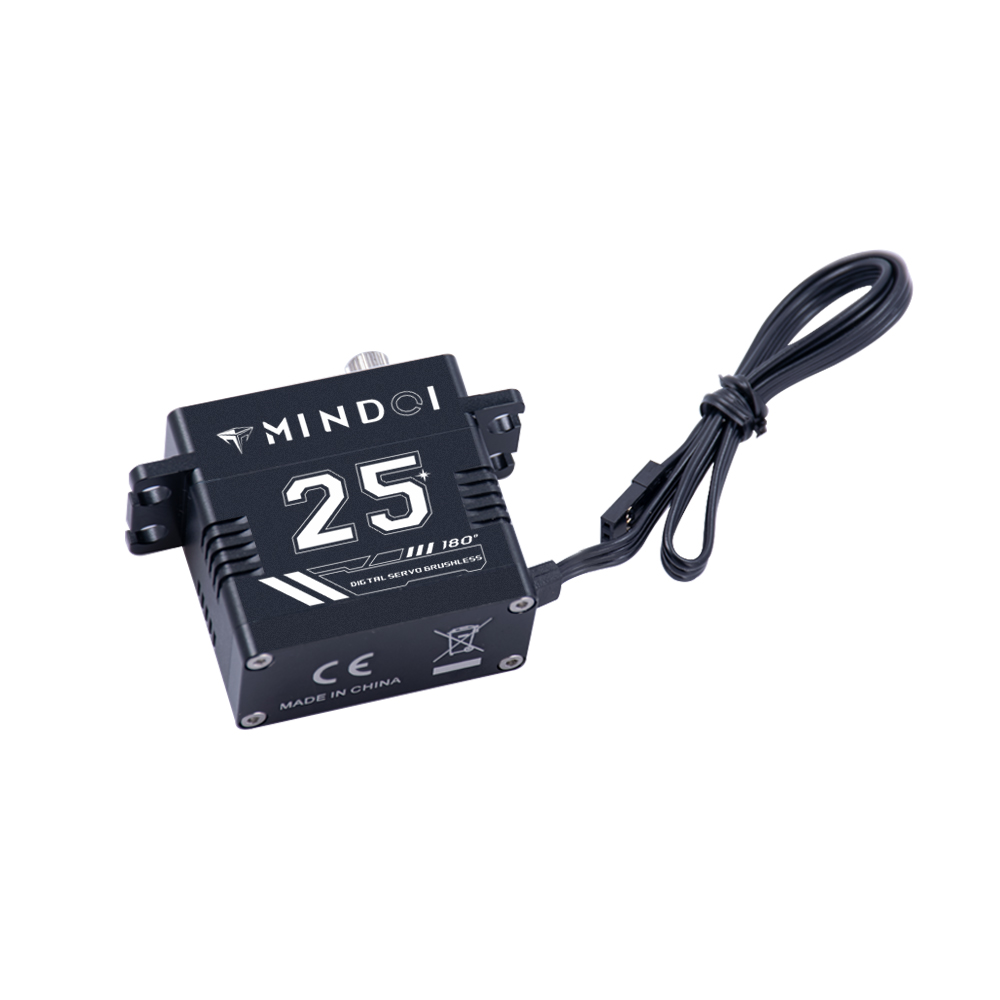

| 3.1 | 舵机尺寸 Size | 40.020.040.5mm |
| 3.2 | 重量 Weight | 80g±5% |
| 3.2 | 齿轮类型 Gear type | 5 Metal |
| 3.4 | 机构极限角度 Limit angle | 360° |
| 3.5 | 轴承 Bearing | 2BB |
| 3.6 | 出力轴 Horn gear spline | 25T 直径:5.9mm |
| 3.7 | 摆臂 Horn type | Plastic, POM |
| 3.8 | 外壳 Case | Aluminum alloy |
| 3.9 | 舵机线 Connector wire | 300mm±5mm |
| 3.10 | 马达 Motor | Coreless Motor |
| 3.11 | 防水性能 Splash water resistance | IP65 |
| 4.电气特性 Electrical Specification | ||
| No | Item | Specification |
| 4.1 | 工作电压 Operat voltage | 4.8V 6.0V 7.2V 8.4V |
| 4.2 | 静态电流 Idle current | ＜40mA |
| 4.3 | 空载转速 No load speed | 0.08sec/60° 0.06sec/60° 0.05sec/60° 0.04sec/60° |
| 4.4 | 空载电流 Runnig current | 250mA 280mA 310mA 350mA |
| 4.5 | 堵转扭矩 Peak stall torque | 20kg.cm 23kg.cm 25kg.cm 27kg.cm |
| 4.6 | 堵转电流 Stall current | 2000mA±10% 2400mA±10% 2700mA±10% 3200mA±10% |
| 5.控制特性 Control Specification | ||
| No | Item | Specification |

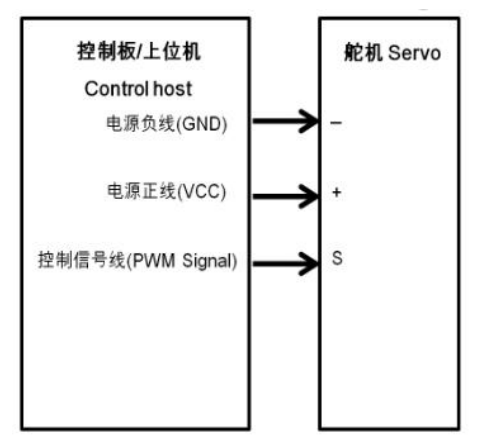

| 5.1 | 控制信号 Command signal | Pulse width modification |
| 5.2 | 放大器类型 Amplifier type | Digital controller |
| 5.3 | 脉冲宽度范围 Pulse width range | 500～2500usec |
| 5.4 | 中点位置 Neutral position | 1500usec |
| 5.5 | 旋转角度 Running degree | 180°±3°(when 500～2500usec) |
| 5.6 | 死区宽度 Dead band width | 2 usec |
| 5.7 | 旋转方向 Rotating direction | Counterclockwise (when 1000～2000usec) |
